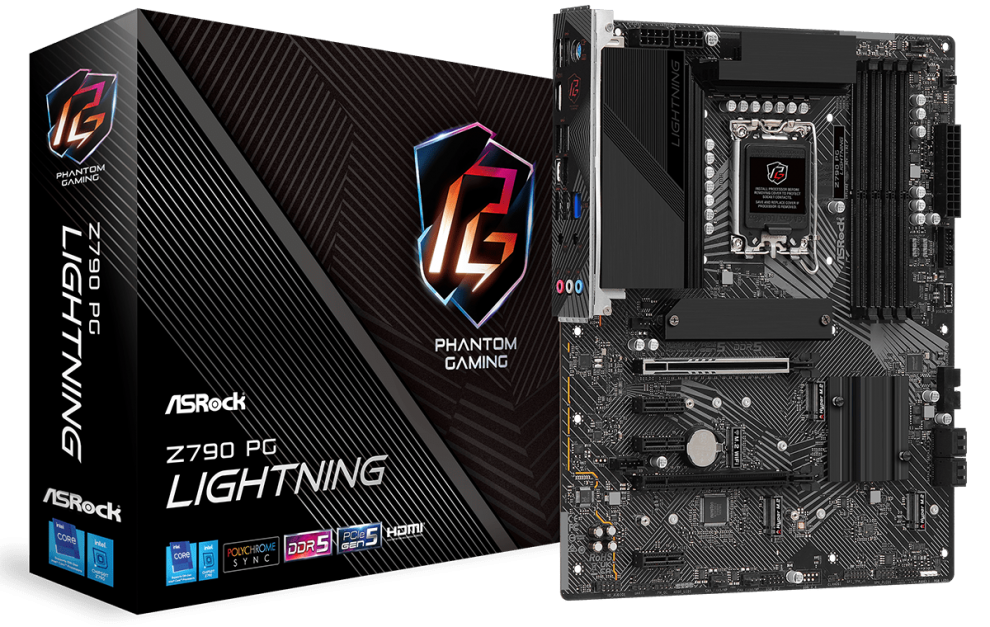

Онлайн ASRock Z790 PG Lightning D5
Арт.№: 12732718
Сравни
Добави в любими
179.99 € 154.99 €
Коментирай цената
Поръчай и вземи от:
- LGA1700 - Supports 14th, 13th and 12th Gen Intel Core Processors
- Intel Z790
- 4 x SATA3 6.0 Gb/s Connectors
- Nahimic Audio
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Марка: Asrock
- Категория: Компоненти, Дънни платки
- OEM код: Z790 PG LIGHTNING
Рейтинг:
2.2/5 на базата на 6 оценки
Характеристики на ASRock Z790 PG Lightning D5
| CPU | LGA1700 - Supports 14th, 13th and 12th Gen Intel Core Processors |
| Чипсет | Intel Z790 |
| RAM памет | Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)4 x DDR5, Maximum Memory Capacity 256GB |
| Твърд диск интерфейс | 4 x SATA3 6.0 Gb/s Connectors1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes |
| Разширителни слотове | 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 modeSupports AMD CrossFire1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5) |
| Аудио | 7.1 CH HD Audio (Realtek ALC897 Audio Codec)Nahimic Audio |
| Мрежа | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Заден панел I/O Портове | 1 x PS/2 Combo1 x HDMI PortHD Audio Jacks: Line in / Front Speaker / Microphone2 x Antenna Mounting Points1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)1 x RJ-45 LAN Port5 x USB 3.2 Gen11 x USB 2.0 Port |
| Вътрешни I/O конектори | 1 x Power LED and Speaker Header1 x RGB LED Header1 x SPI TPM Header3 x Addressable LED Headers1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)1 x CPU Fan Connector (4-pin)1 x 24 pin ATX Power Connector1 x Front Panel Audio Connector1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)1 x Front Panel Type C USB 3.2 Gen1 Header1 x eDP Signal Connector5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)1 x USB 2.0 Header (Supports 2 USB 2.0 ports) |
| Form Factor | ATX |
| Wi-Fi модул | НЕ |
| Гаранция | 3 години |
Препоръчваме ви също
Документи за сваляне
Ръководство за употреба
2 MB | pdf
pdf
