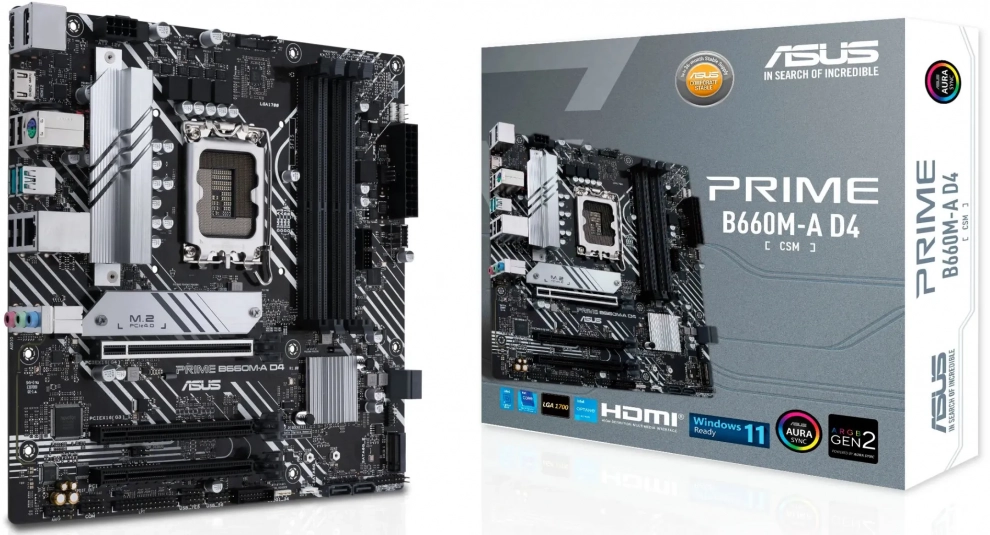

Онлайн ASUS PRIME B660M-A D4-CSM
Арт.№: 13171033
Сравни
Добави в любими
168.⁹⁹ €
Коментирай цената
Поръчай и вземи от:
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- Intel B660
- M.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 mode
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- 1 x Intel® 1Gb Ethernet
- Марка: Asus
- Категория: Компоненти, Дънни платки
- OEM код: 90MB19K0-M1EAYC
Рейтинг:
0.0/5 на базата на 1 оценка
Характеристики на ASUS PRIME B660M-A D4-CSM
| CPU | Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Чипсет | Intel B660 |
| RAM памет | 4 x DDR4 DIMM sockets supporting up to 128 GB5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Твърд диск интерфейс | 4 x SATA3 6.0 Gb/sM.2_1 slot (Key M), type 2242/2260/2280 - Intel® 12th Gen processors support PCIe 4.0 x4 modeM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Разширителни слотове | 1 x PCIe 4.0/3.0 x16 slot1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 3.0 x16 slot (supports x1 mode) |
| Аудио | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Мрежа | 1 x Intel® 1Gb Ethernet |
| Заден панел I/O Портове | 3 x Audio jacks1 x DisplayPort4 x USB 2.0 ports (4 x Type-A)1 x Intel 1Gb Ethernet port2 x USB 3.2 Gen 2 ports (2 x Type-A)1 x PS/2 Keyboard/Mouse combo port2 x HDMI ports |
| Вътрешни I/O конектори | 1 x Clear CMOS Header1 x 4-pin CPU Fan header2 x M.2 slots (Key M)4 x SATA 6Gb/s ports1 x 8-pin +12V Power connector1 x Aura RGB header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headers1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x COM Port header1 x LPT header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function2 x USB 2.0 headers support additional 4 USB 2.0 ports1 x 24-pin ATX main power connector2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports1 x USB 2.0 header supports additional 1 USB 2.0 port3 x AURA Addressable Gen 2 headers |
| Form Factor | Micro ATX |
| Wi-Fi модул | НЕ |
| Гаранция | 3 години |
