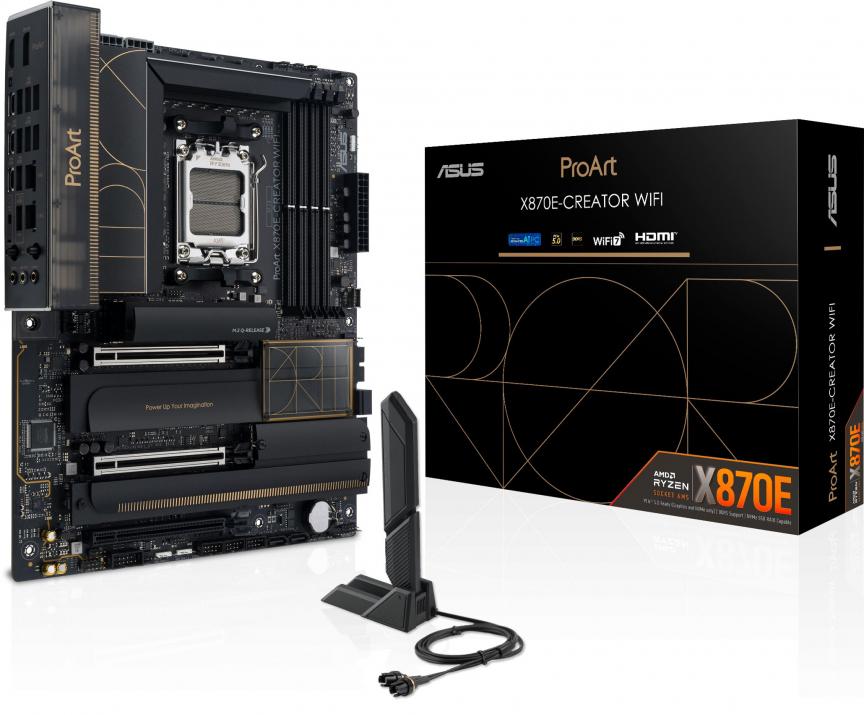

Онлайн Дънна платка ASUS ProArt X870E-CREATOR WIFI
Арт.№: 12947401
Сравни
Добави в любими
599.99 €
Коментирай цената
Поръчай и вземи от:
- AMD Socket AM5, support for: AMD Ryzen 7000 / 8000 / 9000 Series Processors
- AMD X870E
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- 1 x Marvell® AQtion 10Gb Ethernet
- Марка: Asus
- Категория: Компоненти, Дънни платки
- OEM код: 90MB1IG0-M0EAY0
Рейтинг:
0.0/5 на базата на 1 оценка
Характеристики на Дънна платка ASUS ProArt X870E-CREATOR WIFI
| CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / 8000 / 9000 Series Processors |
| Чипсет | AMD X870E |
| RAM памет | 4 x DDR5, Maximum Memory Capacity 192GB |
| Твърд диск интерфейс | 4 x SATA3 6.0 Gb/sM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) |
| Разширителни слотове | 1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***) |
| Аудио | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Мрежа | 1 x Intel® 2.5Gb Ethernet1 x Marvell® AQtion 10Gb EthernetBluetooth v5.4802.11be 2x2 Wi-Fi 7 Module |
| Заден панел I/O Портове | 3 x Audio jacks1 x Intel® 2.5Gb Ethernet port1 x Clear CMOS button1 x USB 2.0 port (1 x Type-A)1 x Marvell® AQtion 10Gb Ethernet port1 x BIOS FlashBack™ button1 x Wi-Fi module1 x USB 20Gbps port (1 x USB Type-C)2 x USB4 Type-C Ports (40 Gb/s)7 x USB 10Gbps ports (7 x Type-A)1 x DisplayPort (Input only)1 x HDMITM port |
| Вътрешни I/O конектори | 1 x 4-pin CPU Fan header4 x SATA 6Gb/s ports1 x 4-pin AIO Pump header1 x Thermal Sensor header1 x 4-pin CPU OPT Fan header3 x Addressable Gen 2 headers1 x COM Port header1 x 24-pin ATX main power connector1 x chassis intrusion header5 x 4-pin Chassis Fan headers4 x M.2 slots (Key M)1 x CPU Over Voltage jumper1 x Front panel audio header (F_AUDIO)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge)1 x 10-1 pin Front System Panel header2 x 8-pin +12V CPU Power connectors |
| Form Factor | ATX |
| Wi-Fi модул | ДА |
| Гаранция | 3 години |
