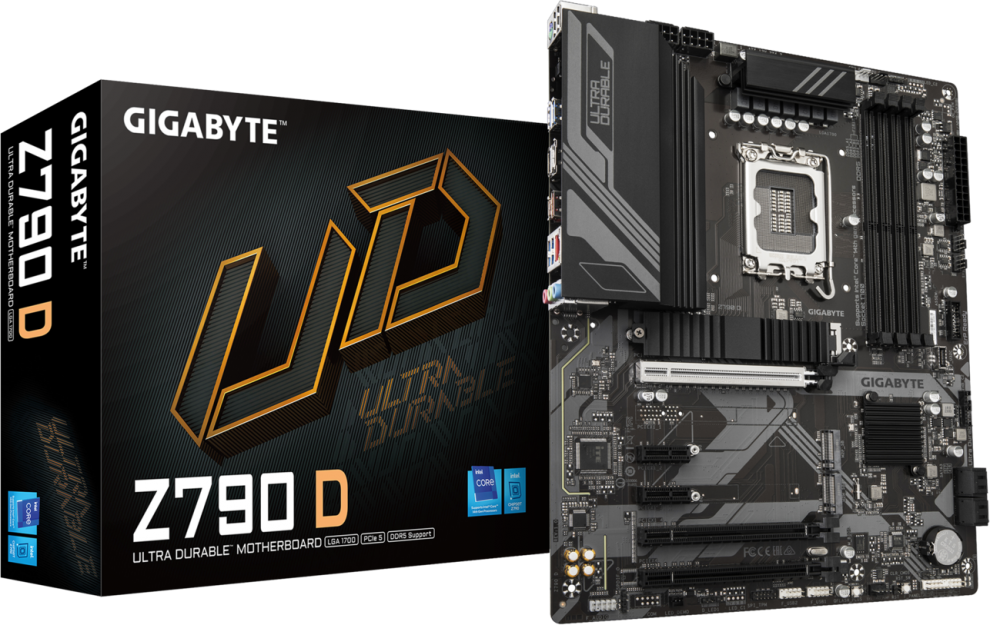

Онлайн Gigabyte Z790 D (rev. 1.0)
Арт.№: 12904407
Сравни
Добави в любими
169.99 €
Коментирай цената
Поръчай и вземи от:
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron® Processors LGA 1700
- Intel Z790
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Realtek® audio codec; High Definition Audio; 2/4/5.1/7.1-channel
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Марка: Gigabyte
- Категория: Компоненти, Дънни платки
- OEM код: Z790 D 1.0
Рейтинг:
0.0/5 на базата на 1 оценка
Характеристики на Gigabyte Z790 D (rev. 1.0)
| CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron® Processors LGA 1700 |
| Чипсет | Intel Z790 |
| RAM памет | 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memorySupport for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules |
| Твърд диск интерфейс | 4 x SATA3 6.0 Gb/s1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
| Разширителни слотове | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16)1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
| Аудио | Realtek® audio codec; High Definition Audio; 2/4/5.1/7.1-channel |
| Мрежа | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Заден панел I/O Портове | 1 x DisplayPort3 x audio jacks2 x USB2.0/1.11 x RJ-45 LAN Port4 x USB 3.2 Gen1 Ports1 x USB Type-C1 x USB 3.2 Gen 2 Type-A1 x HDMI 2.01 x PS/2 Keyboard/Mouse combo port |
| Вътрешни I/O конектори | 1 x Front Panel Header1 x USB 3.2 Gen 1 Header4 x SATA 6Gb/s ports1 x S/PDIF Out header1 x Front Panel Audio header1 x CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors2 x USB 2.0/1.1 headers1 x Trusted Platform Module header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper1 x 24-pin ATX main power connector2 x Thunderbolt add-in card connectors1 x reset button2 x 8-pin ATX 12V power connectors1 x water cooling CPU fan header1 x USB Type-C header, with USB 3.2 Gen 1 support |
| Form Factor | ATX |
| Други | iTE I/O Controller ChipVoltage, Temperature, Fan speed detection, Fan fail warning, Fan speed controlSupport for Q-FlashSupport for GIGABYTE Control Center (GCC)Support for Q-Flash Plus |
| Wi-Fi модул | НЕ |
| Гаранция | 3 години |
